SOLAR SANDWICH TILE SUNGAZING™


USES AND ADVANTAGES

  • Monolithic, without water leaks or leaks.

  • They can be used in all buildings that require thermoacoustic insulation (warehouses, offices,  food, premises, hospitals, homes, farms,  camps, etc.)

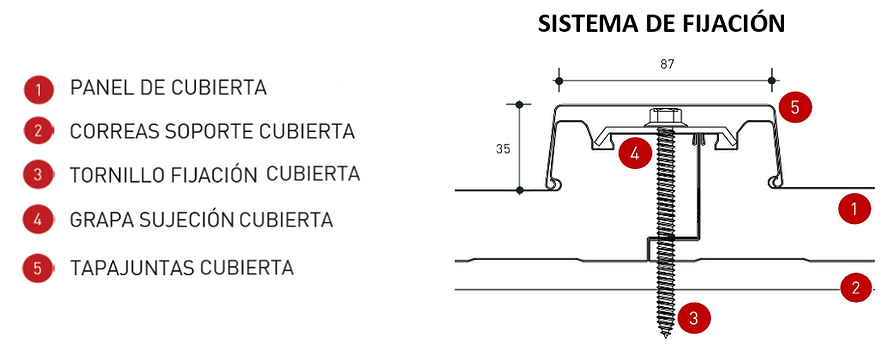

  • Concealed screws, its fastening screw is completely inside, it is NOT exposed to the weather, thanks to our exclusive patented design.

  • They improve the temperature and noise conditions in  buildings, clinics, theaters, offices, etc.

  • Excellent Strength and Durability.

  • Light, saves cost in structures.

Exclusive Innovative Design of Tile type Overlapping Solar Sandwich, composed of high-efficiency low profile solar panels, top and bottom sheet of prepainted steel, core of rigid polyurethane foam (PUR) with flame retardant, self-extinguishing, 97% closed cells. Nominal thermal conductivity of 0.02 W/mK (the best thermal insulator on the market), nominal density of 40 kg/m³. Possibility of connecting them to LFP batteries or other non-flammable batteries, inverters and controllers to form a Solar Plant (Not included, sold separately), generating energy for the building's self-supply of electricity (Approx 100 W/m²). There are no exposed screws, with hermetic seal it is completely waterproof. It provides excellent thermoacoustic comfort, a high-quality aesthetic finish, a long useful life and the best cost/benefit ratio on the market.


SPECIFIC PROPERTIES.

  • Thermal conductivity: 0.02 W/mK Compared to aluminum (1509) or galvanized steel (334) it is relatively low (thermal insulation).

  • Noise reduction: 26.5 dB in frequencies  preferred for octave bands (125, 250, 500, 1000, 2000 and 4000 Hz).

  • Minimum slope range 7% - Maximum 12%.

  • Anti-hail.

  • Cells 97% closed.

  • Polyurethane with retardant components

  • fire, self-extinguishing.

  • Fast product in its healing.

  • No screws left exposed to weather

  • avoiding possible leaks and stumbles when

  • walk on it.


PERFORMANCE.

​

  • - Insulation thickness: 50 mm (2”).

  • - Useful width: 1'000 mm.

  • - Length: 1'400 mm.

  • - Static load (weight): 12 - 15 Kg/m².

  • - Int/ext sheet gauge: C28 (0.40 mm).

  • - Height crests/trapezoids: 30 mm.

  • - Distance between ridges: 300 mm.

  • - Front overhang: 800 mm.

  • - Side overhang: 60 mm.

  • - Longitudinal overlap: 150 mm.

  • - Easel format: 400 x 1'220 mm.

  • - Thermal Conductivity: 0.02 W/mK

  • - Operating Range: -30°C to +60°C.


*Batteries and accessories not included, sold separately.


Minimum Slope 7%
